Dissolved Oxygen (DO)
Fluorescence-based dissolved oxygen sensing spots falling DO early.
0–20 mg/Lrange
Cyclic Self-Cleaning, Utility Model Patent M617481
AquaPack
Sensor probes
that clean themselves.
The probes are cleaned automatically after every measurement, so there's no wading in every few days to wipe them.
Solar powered, it runs on the water or along the bank.
AquaPack is a solar-powered water quality sensing system developed in-house by YenProtek, featuring patented cyclic self-cleaning for stable, long-term monitoring of aquaculture water quality.
8+parameters
Choose your water quality sensors
Matched to your species and water
Matched to your species and water
0plumbing or wiring
Solar powered
No separate host unit needed
No separate host unit needed
4connectivity options
LoRa, NB-IoT, 4G, Wi-Fi
Chosen to suit the on-site signal
Chosen to suit the on-site signal
1year warranty
Faulty under warranty?
We ship a replacement right away
We ship a replacement right away
Patented Cyclic Self-Cleaning
Dirty probes,
unreliable data.
Biofilm on the sensor probes doesn't just skew the readings; it also makes the sensors age faster. AquaPack keeps fouling down from before each measurement to after it.
Patented self-cleaning removes particles & biofilm!
-
Before Measurement
The water sample is treated first, reducing suspended solids and microbial attachment.
-
After Measurement
A cleaning cycle starts automatically, removing microbes attached to the sensor probes and reducing biofilm growth.
-
Less Wading, Steadier Data
Manual cleaning is needed far less often, data stays stable over the long term, and the probes are less prone to aging from fouling.
Granted a utility model patent (No. M617481). Sensor probes still need regular calibration, and dissolved oxygen membrane caps need regular replacement. See the sensor specifications and instructions for details.

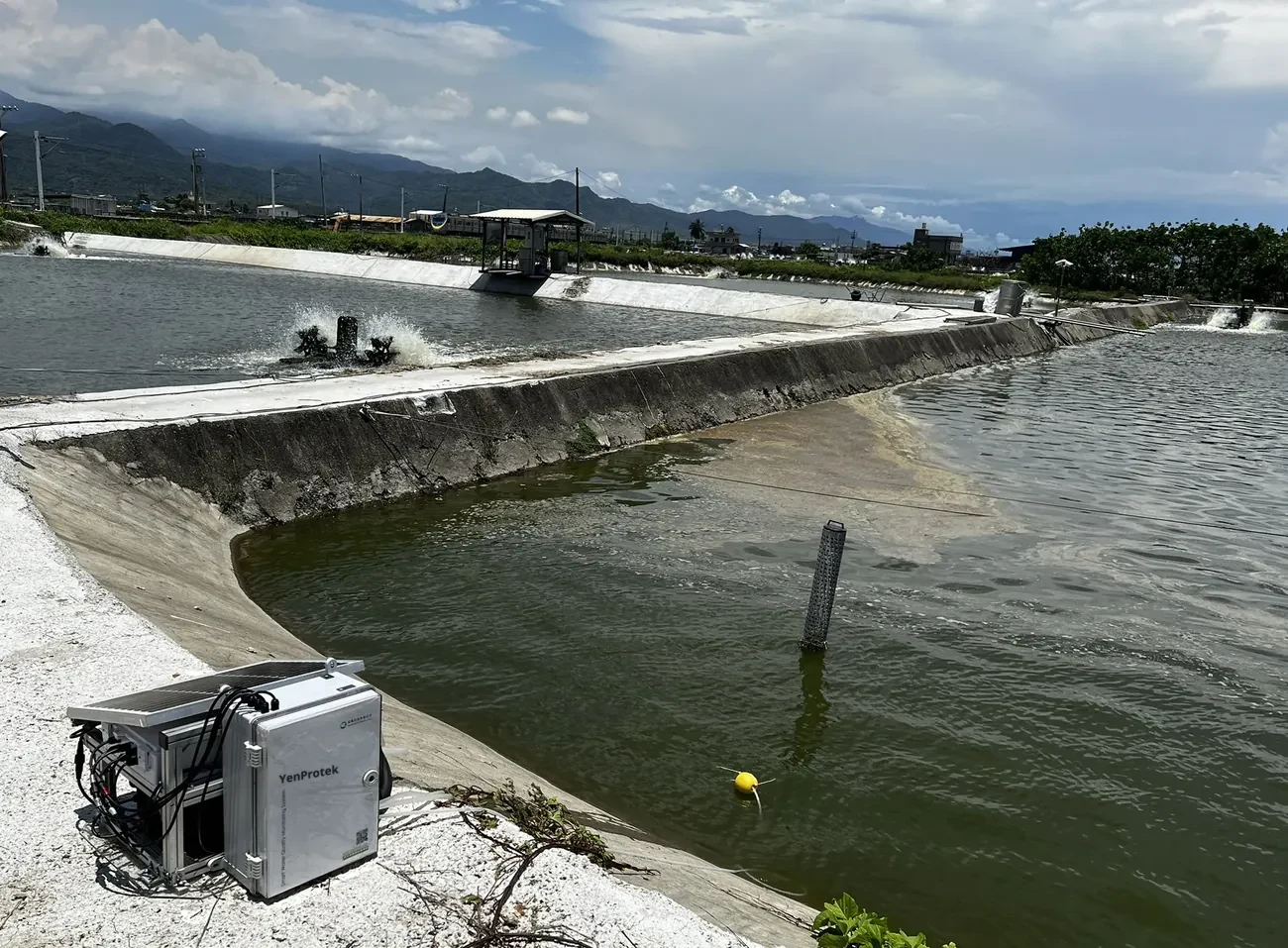

No Plumbing or Wiring
Set it on the bank.
It starts measuring.
Solar powered, with no plumbing or electrical work and no separate host unit to set up. It runs on the water or along the bank, with no changes to your existing pond layout.
Installation

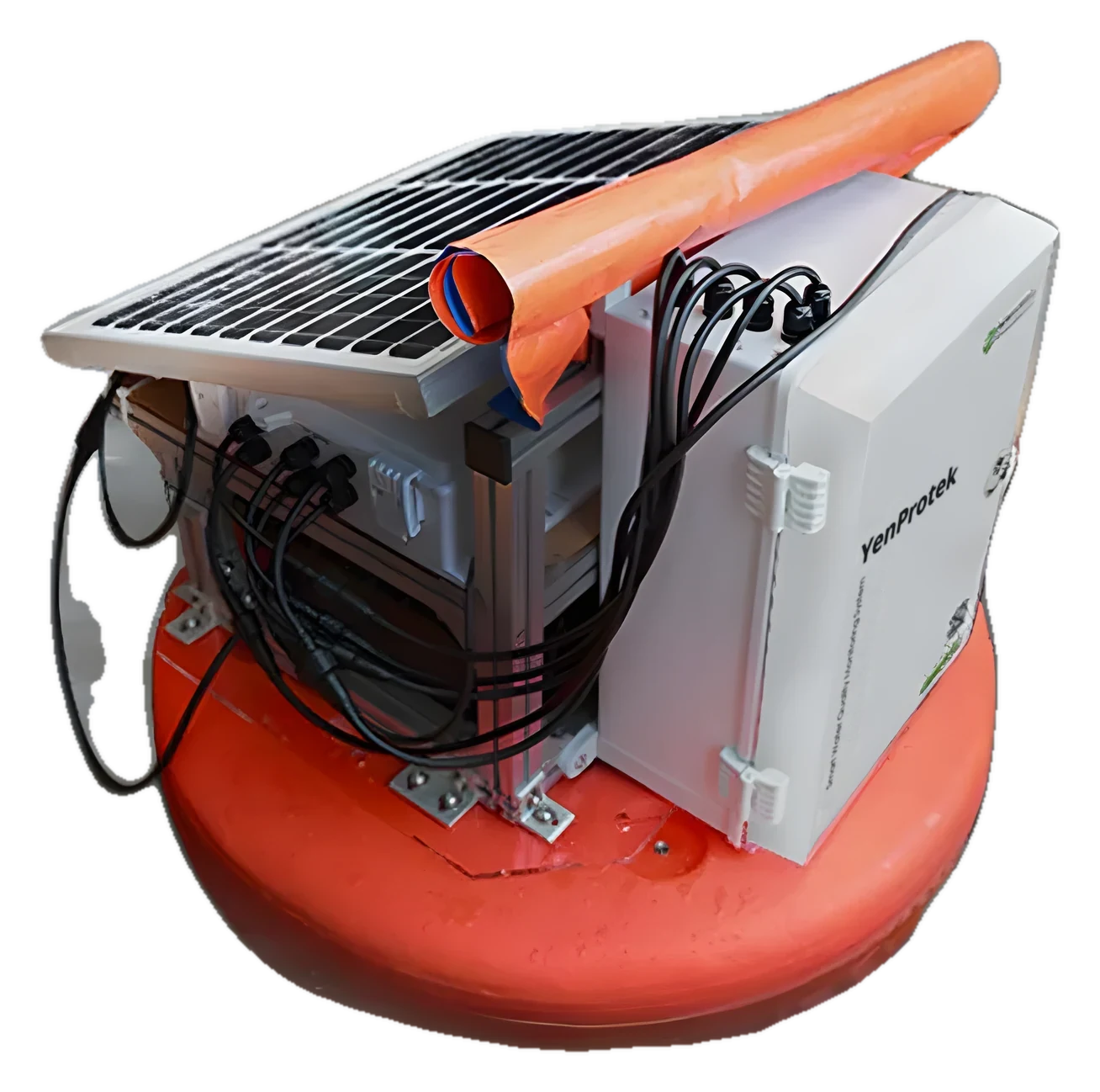

Afloat on the water,
sampling up close.
With a flotation device fitted, AquaPack floats on the surface and draws water samples right where it sits. Choose a platform to suit your water, or place it on the bank.
-
Buoy Platform -
Pontoon Platform -
Floating Frame
-
Unstable Network, No Lost Data
Data is stored on the device first, so it isn't lost to failed uploads when the signal is weak.
-
Scheduled Measurement
It samples and measures automatically on the schedule you set and uploads the data to the cloud, with no manual logging or sorting.
-
Remote Firmware Updates
Feature updates don't require a site visit, easing the workload of on-site staff.
Precision Sensing
Read every change
in the water.
Dissolved oxygen, pH, ammonia nitrogen, water temperature, electrical conductivity, salinity, blue-green algae and chlorophyll: mix and match to suit your aquaculture needs.
pH
Track pH changes in real time, with instant alerts when something is off.
±0.02 pHaccuracy
Ammonia Nitrogen
Follow how ammonia nitrogen builds up over time and stay on top of water quality.
0.001 ppmresolution
Water Temperature, Conductivity & Salinity
For freshwater and seawater alike, track changes in water temperature and salinity.
3basic water quality indicators
Blue-Green Algae & Chlorophyll
Monitor changes in algae concentration and respond early.
2algae indicators
Modular Design
Buy only the sensors you need.
A building-block design, not a fixed kit: combine sensors, connectivity and power freely to suit your water body, species and budget.
Connectivity
- LoRa
- NB-IoT
- 4G
- Wi-Fi
Power Source
- Solar
- Mains Power
- External Battery
Sensor Probes
- Standard probes
- Industrial-grade acid/alkali-resistant probes
Smart Automation
Oxygen drops.
Aerators switch on.
AquaPack senses. The Smart Control Box acts. Set "When… Then…" rules on your phone, with no coding, and keep your ponds covered even when you're away.
AquaPack Senses water quality changes
App / Web Checks the conditions you set
Smart Control Box Starts on-site equipment automatically
WhenDO below set value
ThenAerators & paddlewheels on
WhenDaily at a set time
ThenFeeder runs on schedule
WhenpH outside set range
ThenSend App push & SMS alerts
-
Choose a condition
Set a threshold on any AquaPack reading, such as dissolved oxygen, pH or water temperature. You can also use time as the condition and run actions on a schedule.
-
Choose an action
Pick the equipment the Smart Control Box turns on or off: aerators, paddlewheels, feeders, water pumps, sewage discharge systems and more. It can also send push, SMS or Email notifications at the same time.
-
Save. It's live.
No coding, no engineer on site. Adjust anytime on your phone, or switch equipment on and off remotely with one tap.
Network down? Automation keeps running. The Smart Control Box keeps controlling on-site equipment based on the conditions downloaded during its last connection.
With the YenProtek Smart Control Box, aerators, paddlewheels, feeders, water pumps, smart electrical cabinets, CCTV cameras, sewage discharge systems and other pond equipment can be controlled remotely or on a schedule.
Cloud Platform
Away from the pond?
Check the water anyway.
Sensors, cloud platform and App in one package, so you can manage multiple ponds at once.
Your data, always at hand.
- View real-time data and historical trends on phone, tablet or computer
- Daily, monthly and yearly reports compiled automatically, exported to Excel in one click
- Alerts via App push, LINE, SMS or Email when readings are abnormal
- Scheduled measurement with automatic upload, no manual logging

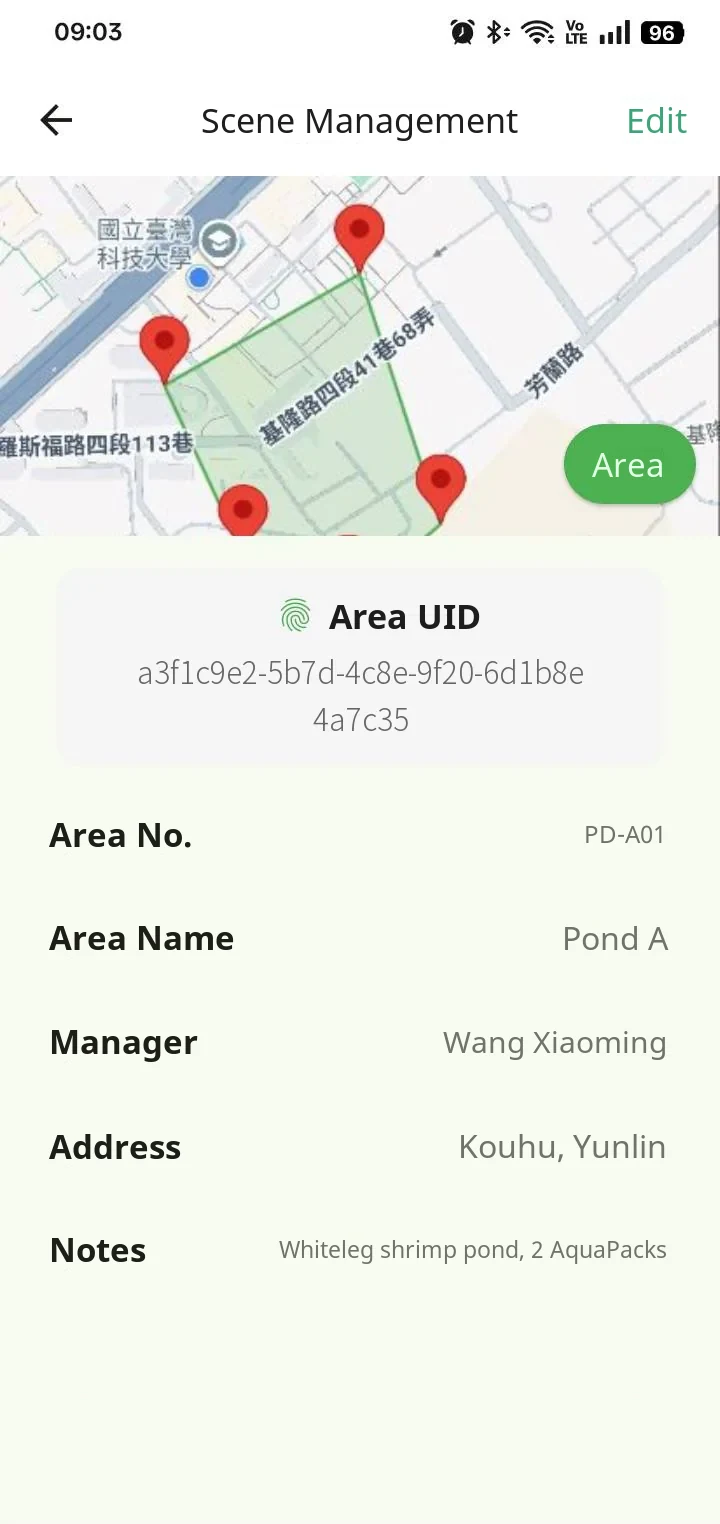

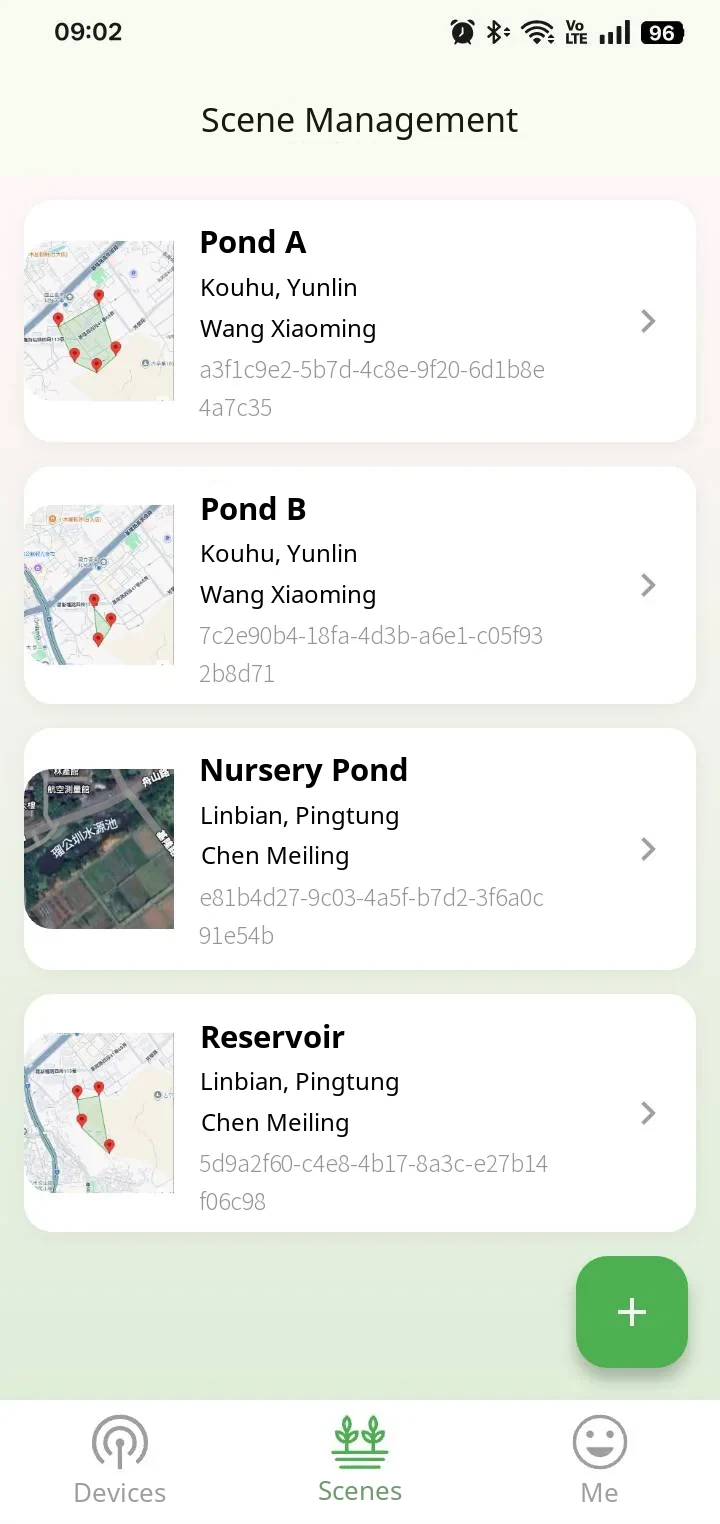

- Manage multiple ponds at once, and outline each site on a map
- Share with your team, with view and control rights set by role
- Multilingual interface in the App and platform

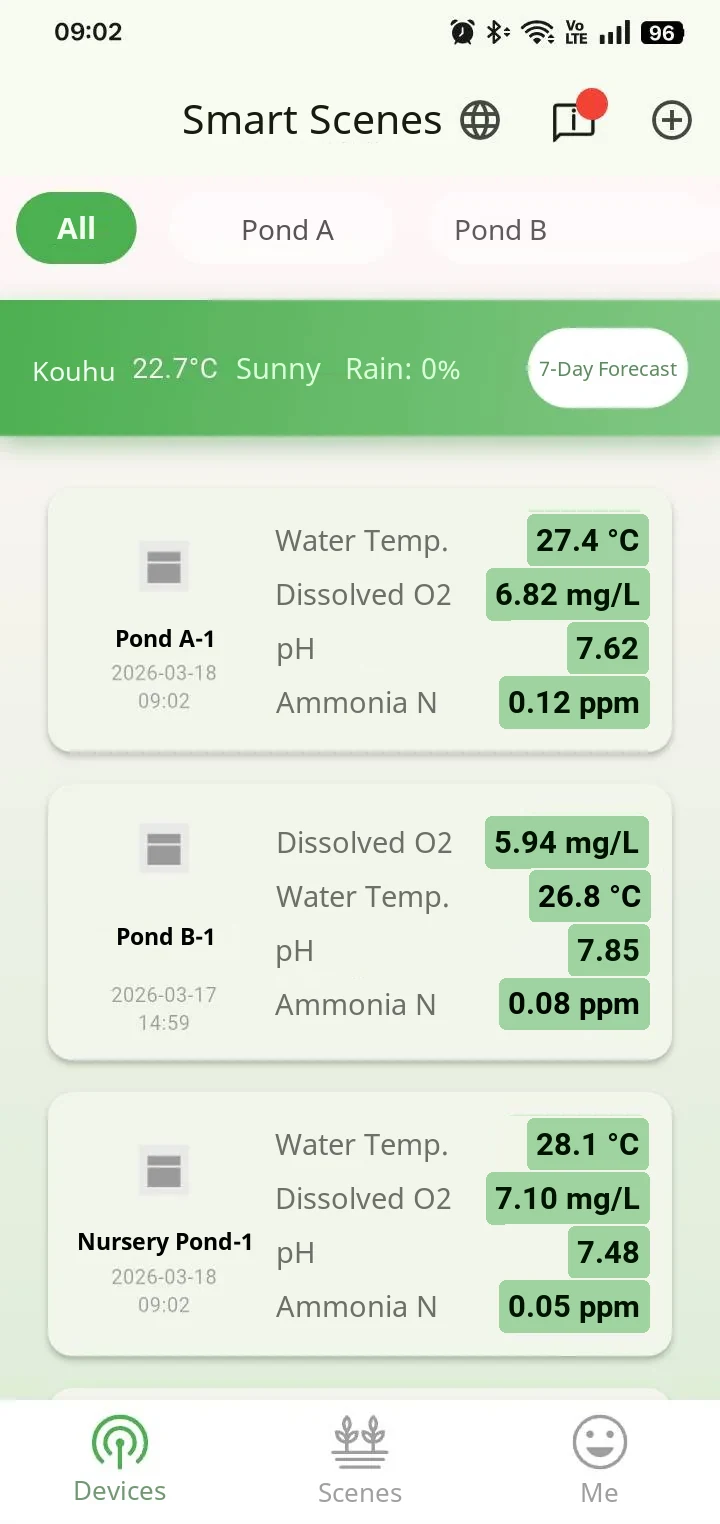

App + Web System
Phone at the pond.
Computer in the office.
One account keeps the mobile App and web system in sync: check readings and set automation on site, then manage every site from a big screen back at the office.
DO6.8 mg/L
pH7.6 pH
Water temp27.5 °C
Illustrative screen
Actual App screen; sample data shown
Warranty & Service
Buy with confidence.
Use with ease.
As simple as a phone or home appliance: use it straight out of the box, and if it fails under warranty, we replace it.
One-Year Warranty
For one year after purchase, we cover any fault in the product itself, and an extended warranty is available. Actual warranty terms are subject to your quotation.
Replaced, Not Repaired
If it fails under warranty, there's no repair trip and no waiting: we ship a replacement right away, so water quality monitoring never stops.
No Plumbing or Wiring
Solar powered, with no plumbing or electrical work and no separate host unit to set up.
In Your Language
The App and cloud platform support a multilingual interface. Designed and made in Taiwan.
Track Record & Recognition
From fish ponds to research sites,
proven in practice.
Frequently Asked Questions
How does self-cleaning work?
Water samples are pretreated before measurement to reduce suspended solids and microbial attachment. After measurement, a cleaning cycle starts automatically to remove microorganisms attached to the sensor probes and reduce biofilm growth. This cyclic self-cleaning technology has been granted a utility model patent (No. M617481).
With self-cleaning, is maintenance still needed?
Self-cleaning greatly reduces how often manual cleaning is needed, but sensor probes are consumables and still require regular calibration. Dissolved oxygen membrane caps need regular replacement, and a damaged pH glass bulb cannot be repaired. For calibration and replacement procedures, please refer to the sensor specifications and usage instructions.
There's no power next to my fish pond. Can it still be installed?
Yes. AquaPack runs on solar power, with no plumbing or electrical work required and no separate host unit to set up. It works whether placed on the water or along the bank.
Can it be used for offshore cage aquaculture?
Yes. AquaPack is suitable for both land-based fish ponds and offshore cage aquaculture, and special industrial-grade acid- and alkali-resistant probes are also available.
Can it automatically turn on paddlewheel aerators when dissolved oxygen is too low?
Yes. With the Smart Control Box, aerators, paddlewheels, and other equipment can start automatically when dissolved oxygen falls below the set value.
What if it breaks?
It comes with a one-year warranty, and an extended warranty is available. If the product fails during the warranty period, there's no need to send it in and wait for repairs: we ship you a replacement right away so your water quality monitoring is back up and running as quickly as possible. After the warranty expires, units can be returned to our factory for repair. Actual warranty terms are subject to your quotation.
Is the App available in my language?
The App and cloud platform offer a multilingual interface, so users everywhere can work in a language they know.
How is pricing calculated?
Pricing is based on the combination of sensors, connectivity, and power options you choose, so you only buy the modules you need. Tell us about your water body and the species you farm, and we'll recommend a configuration and provide a quote.
Specifications
Sensor Specifications & InstructionsSystem
Self-Cleaning
Cyclic self-cleaning (utility model patent No. M617481) Water sample treated before measurement, probes cleaned automatically after
Connectivity
LoRa／NB-IoT／4G／Wi-Fi
Power
Solar Mains power or external battery also supported
Installation
Placed on the water or along the bank No plumbing or wiring, no separate host unit
Measurement & Data
Scheduled measurement, automatic cloud upload Data stored on the device when the network is unstable
Sensor Probes
Standard probes Industrial-grade acid/alkali-resistant probes
Warranty
One-year warranty Faulty units replaced with new ones during warranty Extended warranty available Actual terms subject to quotation
Water Quality Sensing
pH
- Range
- 0 ~ 14 pH
- Accuracy
- ±0.02 pH
- Resolution
- 0.01 pH
Ammonia Nitrogen
- Range
- 0.1 ~ 18000 ppm
- Accuracy
- ±5% F.S.
- Resolution
- 0.001 ppm
Dissolved Oxygen (DO)
- Range
- 0.00 ~ 20.00 mg/L
- Accuracy
- ±2% F.S.
- Resolution
- 0.01 mg/L
Water Temperature
- Range
- 0.0 ~ 60.0 °C
- Accuracy
- ±0.5 °C
- Resolution
- 0.1 °C
Electrical Conductivity (EC)
- Range
- 0 ~ 2000 µS/cm
- Accuracy
- ±2% F.S.
- Resolution
- 0.1 µS/cm
Blue-green Algae
- Range
- 0 ~ 100 µg/L
- Accuracy
- ±2% F.S.
- Resolution
- 0.04 µg/L PC
Chlorophyll
- Range
- 0 ~ 400 µg/L
- Accuracy
- ±2% F.S.
- Resolution
- 0.01 µg/L CHL
Salinity
- Range
- 0 ~ 98%
- Accuracy
- ±3%
- Resolution
- 0.1%
* More sensors and industrial-grade acid/alkali-resistant probes are available; contact us for custom integration or project requirements.
Applications
Suitable for seawater and freshwater, land-based ponds and offshore cage aquaculture, through to tap water and natural water body monitoring.
