Ideal for precision agriculture
Smart Agriculture Field Monitoring System
YenProtek’s Smart Paddy Field Monitoring System aimed at monitoring the weather and soil in real time. Featuring quick and easy installation, it gathers environment data and wirelessly uploads them in clouds for integration with multiple sensors.
Upgrade precision agriculture based on field environmental data, optimize culture timing according to soil properties and crop growth needs, and accurately plan the location and quantity of irrigation, fertilization, and pesticide application. These not only improve crop output and quality, prevent soil degradation by over irrigation and fertilization, but also reduce wasted resources of irrigation waters and fertilizers.
Improve Production Efficiency
Precision agriculture by smart field sensors
Precision irrigation /
fertilization /
pesticide application
Increase harvests by 20%
Save water, electricity, fertilizer and other material costs
Choose the sensor combo you really need
Addressing your concerns in geology, topography, crop type, budget and other factors, YenProtek’s "Small Farmer Pack" employs modular design rather than pre-set sensor pack to enable you to select monitoring items you need to monitor but not waste on non-desired ones.
In particular, the environmental sensing selections include up to 14 environmental sensing components, such as illuminance, photons, atmospheric pressure, atmospheric temperature/humidity, soil temperature/humidity, soil salinity, wind speed, wind direction, etc. In the selection of wireless communication, we offer four mainstream technologies: LoRa, NB-IoT, LTE and Wi-Fi. After the IoT sensor obtains various environmental data from the field, the data is automatically uploaded to the cloud records for integration. The administrator may remotely monitor the status of the environment and crops by more accurate and convenient means.
Easily deployed and cost saving

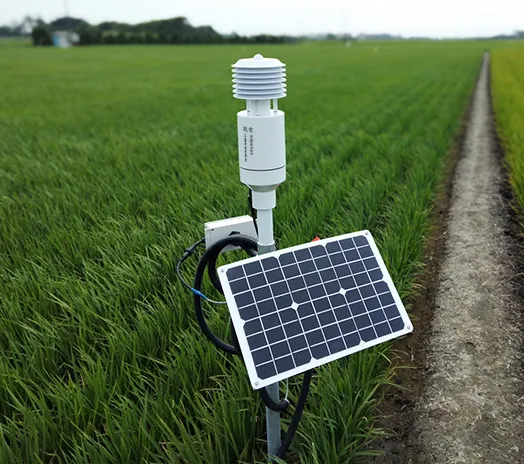

Highly efficient energy-saving technology enables the system to work continuously on solar energy 365 days every year. Just insert the sensor in soil/pot and the system is ready to work. No need for any construction of electric or purchase and installation of computer hosts in advance!
Safe, easy to deploy, cost-effective, ideal for indoor and outdoor application.
Save on Construction/Host Costs
Specifications
| Range | Accuracy | Resolution | |
|---|---|---|---|
| Illuminance | 0~200000Lux | ±4% | 1 Lux |
| Photons |
0~2500µmol/m2s Wavelengths：400~700nm |
<±2% | 1µmol/m2s |
| Pyranometer | 0~1800W/m2 | ±5% | 1.5W/m2 |
| Atmospheric pressure | 300~1100hPa | ±1hPa (25 °C) | 0.1hPa |
| Atmospheric temperature | -40~100 °C | ±0.2 °C | 0.1 °C |
| Atmospheric humidity | 0~100% RH | ±1.8% RH | 0.1% RH |
| CO2 | 0~5000ppm | ±50ppm | 1ppm |
| Soil Temperature | -40~80 °C | ±0.5 °C | ±0.1 °C |
| Soil moisture | 0~100% |
0~53% ±3% 54~100% ±5% |
1% |
| Soil salinity(TDR) | 0~10000us/cm | ±5% | 10us/cm |
| Soil salinity (TDS) | 0~5000us/cm | ±3% | 1us/cm |
| Wind Speed | 0~70m/s | ±0.3m/s | 0.1m/s |
| Wind Direction | 0~359 ° | ±3 ° | 1 ° |
| Rain Gauge | ≦4mm/min | ±4% | 0.2mm |

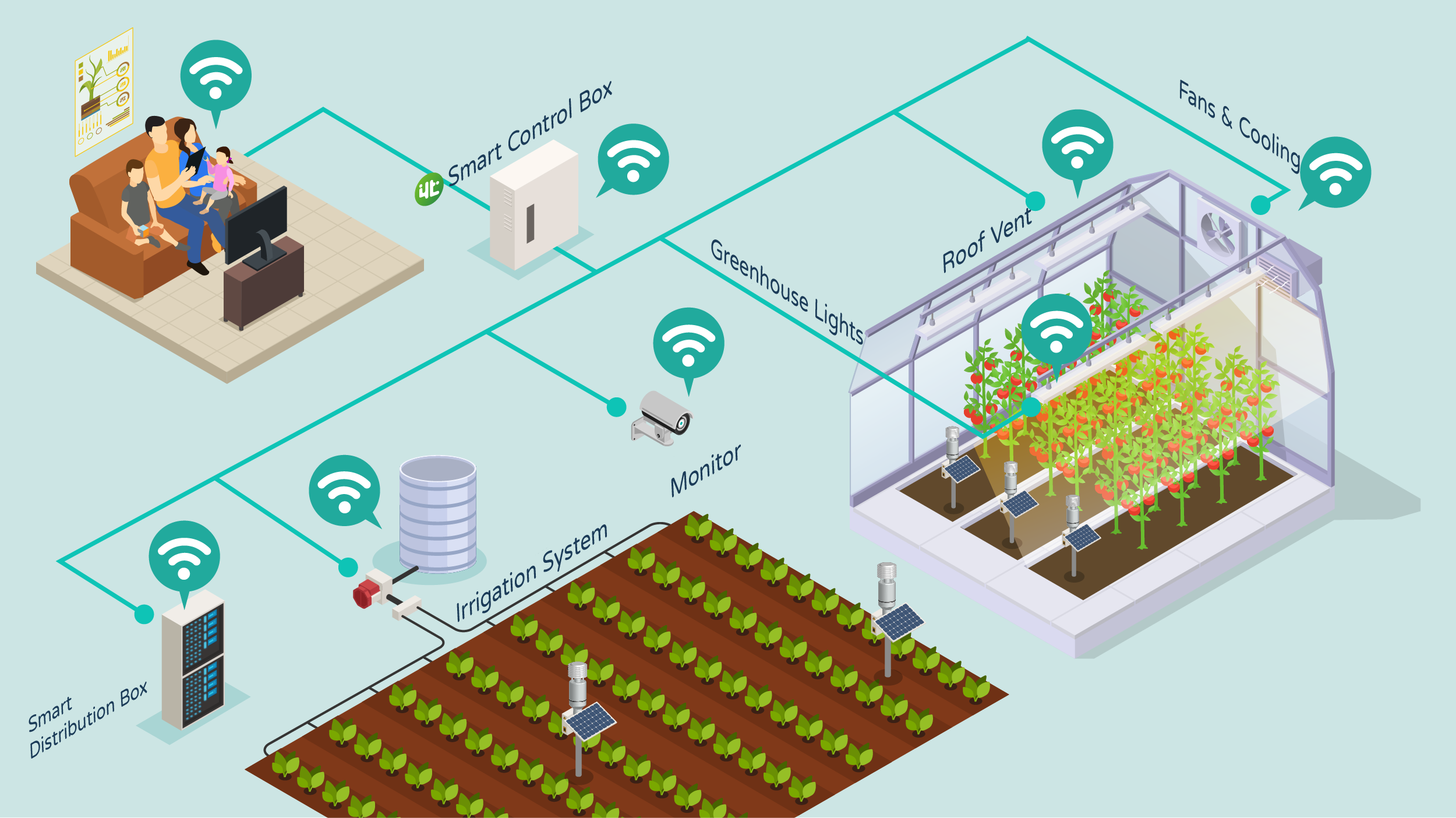

Intelligent I/O control system
YenProtek smart remote control box
With the help of YenProtek smart control box, the farms’ environment conditions and equipment operation status remain under your control even when you are traveling. This not only cuts bills of water and electricity but also saves you from patrolling the farms and equipment operation which, in turn, leaves you precious time to attend to more important things.
Applicable scenario
Applications of YenProTek Smart Field Monitoring System
With the help of the Internet of Things, power-saving and energy-saving technologies, YenProtek is offering the best feld monitoring solutions even at remote areas and challenging scenarios.
